LION STEEL SDN BHD

Lion Steel is fully automated with state-of-the-art Direct Current Electric Arc Furnace-Compact Strip Production (EAF-CSP) process, which incorporates the ‘Thin Slab Casting’ technology developed by SMS of Germany.

CSP – Thin Slab Casting technology is recognized worldwide as the latest technology to produce high quality flat steel with significantly higher production yield and energy savings. In adopting this process, Lion Steel is more environmental friendly as it recycles steel scrap and uses the clean raw material, Hot Briquetted Iron (HBI) and Hot Direct Reduction Iron (HDRI) in its EAF operation.

Lion Steel is the only steel mill in Malaysia to use this advanced CSP technology. Its Cold Rolling Mill facilities included a Continuous Pickling and Oiling Line, 5-Stand 4-High Tandem Mill, Electrolytic Cleaning Line, Batch Annealing Furnace, Temper Mill and a Recoiling and Oiling Line with Tension Leveller.

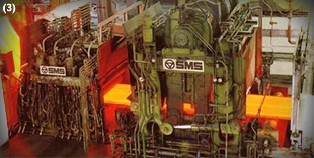

HOT STRIP MILL


	160-ton Direct Current Electric Arc Furnace of an advanced design	Ladle Furnace to ensure steel chemistry and superior quality	Thin Slab Continuous Caster to cast thin slabs


	Soaking Furnace to ensure even slab temperature	7-Stand Hot Strip Mill with 4-High Continuous Variable Crown (CVC) design guarantees strip profile and gauge accuracy	Laminar Cooling System ensures even strip temperature and mechanical properties of coils with excellent surface quality	High-Speed Downcoiler for coiling of strip into hot rolled coil

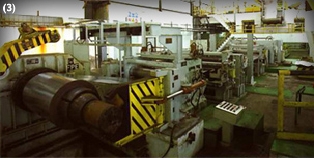

COLD ROLLING MILL


	Continuous Pickling and Oiling Line to remove mill scale from the Strip	5-Stand 4-High Tandem Mill able to reduce strip thickness to 0.35mm	Electrolytic Cleaning Line to clean and remove all emulsion stains from the strip before final coiling


	Batch Annealing Furnace to reduce the hardness of the strip	Temper Mill ensures final flatness and mechanical properties of the strip		Recoiling and Oiling Line to cut the final strip according to customers' specifications
